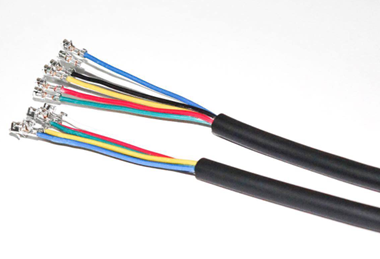

Processed Samples:
| Product Parameters | |
| Product Model | KS-DX02 |
| Product Name | Semi-automatic Multi-core Wire Stripping and Terminating Machine-Ultra-short Wire |
| Product Features | Automatic straightening of multiple core wires, flattening of the front end, stripping of core wires, and crimping terminals |
| Inner Core Peeling | 0-10MM |
| Outer Core Peeling | 16-∞ (unlimited) single line is also suitable |
| Crimping Force | Standard 2T30 stroke |
| Wire Adaption | Inner core wire 22-30AWG |
| Core Number Range | 2-14 Cores |
| Applicable Mold | Regular multi-core mold, ultra-short multi-core mold |
| Processing Capacity | 1000-1300PCS/H |
| Equipment Size | Length 1500*Width 600*Height 1450MM / 160KG |
| Machine Configuration | |
| Pneumatic Component | AirTAC Pneumatic |
| Linear Slide | Hiwin Guide Rail/AirTAC Guide Rail |
| Crimp Motor | 0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control |
| Action Motor | Full Step Control |
| Touch Control | 7-inch KINCO Color LCD Touchable |
| Drive Control | Jiayuan Intelligence |
| Motor Frequency Conversion | Jiayuan Intelligence |
| Circuit Control | Chint Electrical Appliances |
| Program Control | ARM Six-axis Control Card |
| Detection Function | Terminal Detection Include Fault Fault Alarm Include Wire Detection Include Pressure Monitoring (Optional) |
| Electrical Support | AC 220V 0.8Kw Air: 0.5-0.7MPa |
