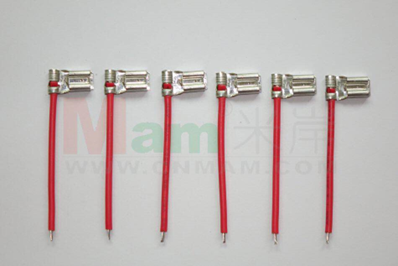

Processed Samples：

Product Parameters
Product Model	CM-D Series
Product Name	Fully Automatic Wetting Machine-Single Line/Double Line/Parallel Line
Product Features	Automatic wire cutting, stripping, crimping terminals at one end, twisting wire wetting at the tail
Product Features	Automatic wire cutting, splitting, stripping, crimping terminals at one end, twisting wire wetting at the tail
Peeling Range	0.5-20MM
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Twisted Wire Length	2-20MM
Wetting Length	0.5-20MM
Cutting Line Length	26-9900MM (Customized 20MM rubber left)
Crimping Force	Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Wire Adaption	1007 AWG4.0MM or less (single wire) 20-30# (double wire)
Wire Adaption	18-30# (parallel line)
Applicable Mold	OTP card mode (Flag-shaped/European-style mode)
Processing Capacity	Within 300MM, 3700PCS/H (dual wire)

Machine Configuration
Pneumatic Component	AirTAC Pneumatic
Linear Slide	Hiwin Guide Rail/AirTAC Guide Rail
Crimp Motor	0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 1.5KW/2.2KW)
Action Motor	45-9900MM (Customized rubber 25MM)Full Step Control (Optional Component Servo)
Touch Control	7-inch KINCO Color LCD Touchable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Eight-axis Control Card
Optional Accessories	Automatic pay-off reel, conveyor belt, pressure monitoring, visual inspection
Detection Function	Terminal Detection Include Fault Fault Alarm Include Wire Detection Include
Detection Function	Pressure Monitoring (Optional)
Electrical Support	AC 220V 2.0Kw Air: 0.4-0.6MPa
Equipment Size	Length 720850 Width1650 Height MM / 265KG

CM-D Series
