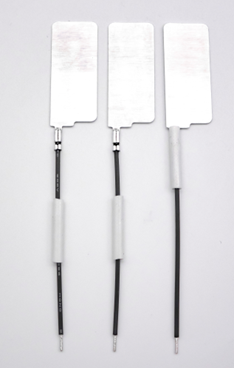

Processed Samples：

Product Parameters
Product Model	KS-DT02
Product Name	Fully Automatic Single-head Wetting and Bushing Terminal Crimping Machine
Product Features	Automatic wire cutting, stripping, pipe threading, crimping terminals at one end
Product Features	The tail is fully stripped, half stripped, twisted, and wetting
Peeling Range	0-20MM
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Twisted Wire Length	3-15MM
Wetting Length	0-15MM
Cutting Line Length	65-9900MM
Thread Length	8-55MM
Applicable Casing	Diameter 1-10MM heat shrink tube or fiberglass tube
Crimping Force	Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Wire Adaption	AWG16-28# 1007 Single electronic wire
Applicable Mold	OTP card mode (Flag-shaped/European-style mode)
Processing Capacity	Within 300MM, 1400-1900PCS/H

Machine Configuration
Pneumatic Component	AirTAC Pneumatic
Linear Slide	Hiwin Guide Rail/AirTAC Guide Rail
Crimp Motor	0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 1.5KW/2.2KW)
Action Motor	1 Set Domestic Line Feeding Servo, Rest are Xuquan Stepper
Touch Control	7-inch KINCO Color LCD Touchable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Eight-axis Control Card
Optional Accessories	Automatic pay-off reel, conveyor belt, pressure monitoring, visual inspection
Detection Function	Terminal Detection Include Air Pressure Detection Include Wire Detection Include
Detection Function	Fault Alarm Include Pressure Monitoring (Optional)
Electrical Support	AC 220V 2.8Kw Air: 0.4-0.6MPa
Equipment Size	Length 1200Width 800Height 1600MM / 300Kg

KS-DT02
