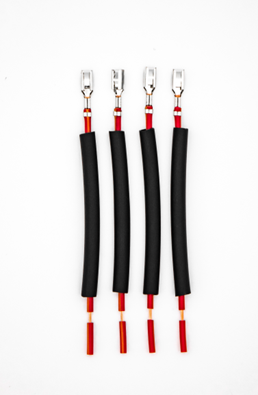

Processed Samples：

Product Parameters
Product Model	KS-DT01
Product Name	Fully Automatic Single-head Long Sleeve Terminal Machine
Product Features	Automatic wire cutting, stripping, inserting long sleeves, and crimping terminals at one end
Product Features	The other end is fully stripped or half stripped
Peeling Range	0-25MM
Thread Length	10-400MM
Applicable Casing	Diameter 2-10MM heat shrink tube or fiberglass tube
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Cutting Line Length	60-9900MM
Crimping Force	Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Wire Adaption	AWG16-28# 1007 Single electronic wire
Applicable Mold	OTP card mode (Flag-shaped/European-style mode)
Electrical Support	AC 220V 2.0Kw Air: 0.4-0.6MPa
Equipment Size	Length 1070Width 750Height 1600MM / 230Kg

Machine Configuration
Pneumatic Component	AirTAC Pneumatic
Linear Slide	Hiwin Guide Rail/AirTAC Guide Rail
Crimp Motor	0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 1.5KW/2.2KW)
Action Motor	Full Step Control (Optional Distribution Line Servo)
Touch Control	7-inch KINCO Color LCD Touchable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Eight-axis Control Card
Optional Accessories	Automatic pay-off reel, conveyor belt, pressure monitoring, visual inspection
Detection Function	Terminal Detection Include Air Pressure Detection Include Wire Detection Include
Detection Function	Fault Alarm Include Pressure Monitoring (Optional)
Processing Capacity	Within 500MM, 1800-2000PCS/H

KS-DT01
