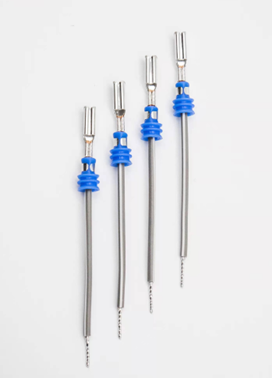

Processed Samples：

Product Parameters
Product Model	KS-DS03
Product Name	Fully Automatic Rain Plug Machine-Wetting Single threading
Product Features	Automatic wire cutting, stripping, and one-end rain plug crimping terminal
Product Features	Tail half-stripped, fully stripped, twisted wire, wetting
Peeling Range	0-25MM
Twisted Wire Length	2-10MM
Wetting Length	0-15MM
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Processing Length	60-9900MM
Crimping Force	Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Wire Adaption	AWG16-30# 1007 Single electronic wire
Applicable Rain Plug	Expandable waterproof plug with diameter less than 17MM
Applicable Mold	Threading rain plug OTP mold (optional European mold)
Applicable Mold	Non-threading rain plug OTP mold (optional European mold, flag mold)
Electrical Support	AC 220V 2.5Kw Air: 0.4-0.6MPa

Machine Configuration
Pneumatic Component	Taiwan AirTAC Pneumatic
Linear Slide	Taiwan Hiwin Guide Rail/Taiwan AirTAC Guide Rail
Crimp Motor	0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 1.5KW/2.2KW)
Action Motor	1 Set Domestic Line Feeding Servo, Rest are Xuquan Stepper
Touch Control	7-inch KINCO Color LCD Touchable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Eight-axis Control Card
Optional Accessories	Automatic pay-off tray, conveyor belt, pressure monitoring, plug detection
Optional Accessories	Pierce first and then peel off the module
Detection Function	Terminal Detection Include Waterproof Plug Detection Include Air Pressure Detection Include Wire Detection Include
Detection Function	Fault Alarm Include Pressure Monitoring (Optional)
Processing Capacity	Within 300MM, 1300-1400PCS/H
Equipment Size	Length 1200Width 800Height 1600MM / 380Kg

KS-DS03
