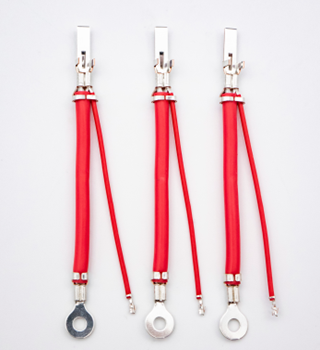

Processed Samples:

Product Parameters
Product Model	KS-HY03
Product Name	Fully Automatic Three-in-one Crimping Terminal Machine
Product Features	Automatic wire cutting, stripping, and combining two wires into one terminal
Product Features	Press a terminal at the end of wires 1 and 2.
Peeling Range	0-15MM
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Processing Length	60-9900MM (45MM can be customized)
Crimping Force	Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Wire Adaption	AWG16-28# 1007 Single electronic wire
Applicable Mold	OTP card mode (optional flag-shaped/European-style mode)
Electrical Support	AC 220V 2.5Kw Air: 0.4-0.6MPa
Equipment Size	Length 1450 * Width 800 * Height 1650MM / 520KG
Processing Capacity	Within 300MM, 2200-2500PCS/H

Machine Configuration
Pneumatic Component	AirTAC Pneumatic
Linear Slide	Hiwin Guide Rail/AirTAC Guide Rail
Crimp Motor	0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 1.5KW/2.2KW)
Action Motor	1 Set Wire Feeding Servo, Rest are Stepper
Touch Control	7-inch KINCO Color LCD Touchable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Twelve-axis Motion Control Card
Optional Accessories	Automatic pay-off reel, conveyor belt, pressure monitoring, visual inspection
Detection Function	Terminal Detection Include Air Pressure Detection Include Wire Detection Include
Detection Function	Fault Alarm Include Pressure Monitoring (Optional)

KS-HY03
