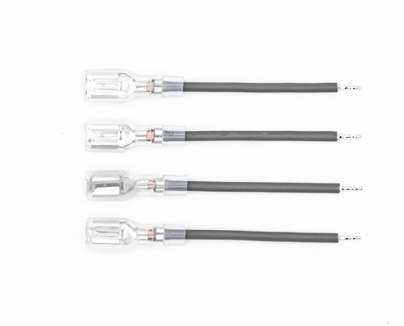

Processed Samples:

Product Parameters
Product Model	KS-H01
Product Name	Fully Automatic Sheath Terminal Machine-Wetting Single Threading
Product Features	Automatic wire cutting, stripping, and sheathed crimping terminals
Product Features	The tail is fully peeled, fully stripped, twisted, and wetting
Peeling Range	0-15MM
Twisted Wire Length	2-10MM
Wetting Length	0-20MM
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Processing Length	50-9900MM
Crimping Force	Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Wire Adaption	AWG16-28# 1007 Single electronic wire
Applicable Mold	OTP card mode (optional flag-shaped/European-style mode)
Electrical Support	AC 220V 2.5Kw Air: 0.4-0.6MPa
Equipment Size	Length 750Width 950Height 1650MM (excluding accessories) / 280Kg

Machine Configuration
Pneumatic Component	AirTAC Pneumatic
Linear Slide	Hiwin Guide Rail/AirTAC Guide Rail
Crimp Motor	0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 1.5KW/2.2KW)
Action Motor	1 Set Domestic Line Feeding Servo, Rest are Xuquan Stepper
Touch Control	7-inch KINCO Color LCD Touchable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Eight-axis Control Card
Optional Accessories	Automatic pay-off reel, conveyor belt, pressure monitoring, visual inspection
Detection Function	Terminal Detection Include Air Pressure Detection Include Wire Detection Include
Detection Function	Fault Alarm Include Pressure Monitoring (Optional)
Processing Capacity	Within 300MM, 1500PCS/H

KS-H01
