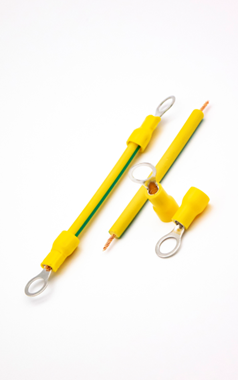

Processed Samples:

Product Parameters
Product Model	KS-YS01
Product Name	Fully Automatic Pre-insulated Terminal-dual Voltage
Product Features	Automatic wire cutting, stripping, twisting, threading, and crimping terminals
Product Features	Can process single or pre-insulated terminals
Peeling Range	0-15MM
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Processing Length	40-9900MM
Crimping Force	Standard 3T30 stroke (optional 40 stroke)
Wire Adaption	AWG14-26# 1007 Single electronic wire
Applicable Mold	OTP card mode
Electrical Support	AC 220V 2.5Kw Air: 0.4-0.6MPa
Equipment Size	Length 1150Width 750Height 1600MM (excluding accessories) / 450Kg
Processing Capacity	Within 300MM, 1100-1300PCS/H

Machine Configuration
Pneumatic Component	AirTAC Pneumatic
Linear Slide	Hiwin Guide Rail/AirTAC Guide Rail
Ball Screw Rod	Taiwan TBI Screw
Crimp Motor	1.5KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 2.2KW)
Action Motor	1 Set Domestic Back Peeling Servo, 1 Set Domestic Translation Servo, Rest are Xuquan Stepper
Touch Control	7-inch KINCO Color LCD Touchable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Eight-axis Control Card
Optional Accessories	Automatic pay-off reel, conveyor belt, pressure monitoring, visual inspection
Detection Function	Terminal Detection Include Air Pressure Detection Include Wire Detection Include
Detection Function	Fault Alarm Include Pressure Monitoring (Optional)

KS-YS01
