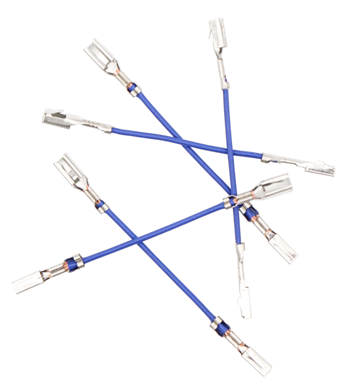

Processed Samples：

Product Parameters
Product Model	CM-S01
Product Name	Fully Automatic Double-head Terminal Machine
Product Features	Automatic wire cutting, stripping, double-ended crimping terminals
Product Features	Can process single or with open terminals
Peeling Range	0-15MM
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Processing Length	45-9900MM (Customized rubber 25MM)
Crimping Force	Standard 2T30 stroke (optional 3T/4T)/(optional 40 stroke)
Wire Adaption	AWG16-28# 1007 Single electronic wire
Applicable Mold	OTP card mode (optional flag-shaped/European-style mode)
Electrical Support	AC 220V 2.5Kw Air: 0.4-0.6MPa
Equipment Size	Length 800Width 830Height 1600MM / 285KG
Processing Capacity	Within 300MM, 3800-4000PCS/H

Machine Configuration
Pneumatic Component	AirTAC Pneumatic
Linear Slide	Hiwin Guide Rail/AirTAC Guide Rail
Crimp Motor	0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 1.5KW/2.2KW)
Action Motor	45-9900MM (Customized rubber 25MM)Full Step Control (Optional Component Servo)
Touch Control	7-inch KINCO Color LCD Touchable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Eight-axis Control Card
Optional Accessories	Automatic pay-off reel, conveyor belt, pressure monitoring, visual inspection
Detection Function	Terminal Detection Include Air Pressure Detection Include Wire Detection Include
Detection Function	Fault Alarm Include Pressure Monitoring (Optional)
Transmission Mode	Mainly Guide Rail Drive + Belt, Four-wheel Wire Feeding

CM-S01
