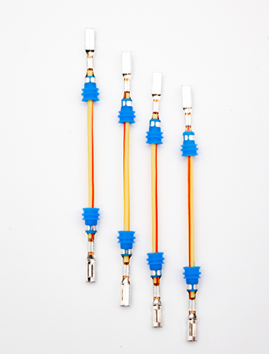

Processed Samples:

Product Parameters
Product Model	KS-SS02
Product Name	Fully Automatic Rain Plug Machine-Double Pressure and Double Threading
Product Features	Automatic wire cutting, peeling, double-ended threading rain plug, double-ended crimping terminal
Peeling Range	0-25MM
Cutting Line Tolerance	When the wire length is ≥1000MM, ±0.4%. The longer/thicker the wire, the greater the tolerance
Processing Length	60-9900MM
Crimping Force	Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Wire Adaption	AWG16-30# 1007 Single electronic wire
Applicable Rain Plug	Expandable waterproof plug with diameter less than 17MM
Applicable Mold	Threading rain plug OTP mold (optional European mold)
Applicable Mold	Non-threading rain plug OTP mold (optional European mold, flag mold)
Electrical Support	AC 220V 3.0Kw Air: 0.4-0.6MPa
Equipment Size	Length 1300Width 800Height 1600MM / 500Kg
Processing Capacity	Within 300MM, 1100-1400PCS/H

Machine Configuration
Pneumatic Component	Taiwan AirTAC Pneumatic
Linear Slide	Taiwan Hiwin Guide Rail/Taiwan AirTAC Guide Rail
Ball Screw Rod	Taiwan TBI Screw
Crimp Motor	0.75KW Three-phase Asynchronous Motor, Frequency Conversion Control (Optional 1.5KW/2.2KW)
Action Motor	2 Sets Translational Delta Servo, 1 Set Back-stripping Domestic Servo, and 1 Set Domestic Servo for Wire Feeding
Touch Control	7-inch KINCO Color LCD Touchable/Removable Programmable
Drive Control	Jiayuan Intelligence
Motor Frequency Conversion	Jiayuan Intelligence
Circuit Control	Chint Electrical Appliances
Program Control	ARM Eight-axis Motion Control Card
Optional Accessories	Automatic pay-off reel, conveyor belt, pressure monitoring, plug detection
Detection Function	Terminal Detection Include Waterproof Plug Detection Include Air Pressure Detection Include Wire Detection Include
Detection Function	Fault Alarm Include Pressure Monitoring (Optional)

KS-SS02
